Purchase a qualifying Q-Stress Cardiac Stress Testing System and TrackMaster TMX428 treadmill and receive a $2,000 rebate.*
OR Purchase a Q-Stress Cardiac Stress Testing System and receive a $1,000 rebate.
Offer available on eligible purchases made between January 1 - June 30, 2026. To be eligible, the customer must purchase qualifying products identified in this
document and provide proof of purchase as indicated on the redemption form found at hillrom.com/svs-2026-promo. To qualify, all information must be submitted
via the online redemption process by August 15, 2026. Promotion valid for customers in the U.S. only. All questions must be addressed directly to Baxter. Distributor
stocking orders do not qualify. Please allow 12 weeks for receipt of the rebate. Promotion cannot be combined with any other promotion, offer, coupon, enhanced
discount or special pricing arrangement; some exclusions apply. All customers must submit a W-9.
Welch Allyn reserves the right to make changes without notice in design, specifications and models.
The only warranty Welch Allyn makes is the express written warranty extended on the sale or rental of its products.
With the included Trackmaster TMX428 Treadmill, the TMX428 offers significant performance improvements to stand out as one of the top stress-testing treadmills on the market. The 22" (56 cm) running belt is the widest in the industry, which provides confidence to the user. MasterTrack is a patented v-guide on the underside of the running belt, which matches grooves in the running deck and rollers. This prevents any lateral movement of the belt and eliminates belt alignment issues. In addition, the deck is mounted on shock absorbing isolators to minimize impact stress.
- Simultaneous PC-based ECG (12- lead PC ECG)/PC EKG Diagnostic Acquisition.
- Real-time 3-, 6- or 12- lead Color Display of ECG/EKG Complex.
- 10 foot Patient ECG / EKG Cable with Locking Replaceable Leads (plus 3 feet)
- Full Patient Demographics and Information.
- HR with Global Measurements, Complete Interval Values and ST information.
- Capture Unlimited ECG/EKG Durations of Patient ECG Data to Hard Drive, Floppy or any Storage Medium.
- USB-compatible (no batteries or extra power supplies needed)
- User Selectable Lead Formats on Final ECG Report.
- Print Final Report to Non-fading Laser Hard Copy.
- Real-time ECG/EKG Monitoring; 1-, 2-, 3-, 6- or 12- user Selectable Leads.
- Complete Test Storage of ECG/EKG Data to Hard Disk, Floppy or Optical.
- 29 Preprogrammed Protocols with 5 User Defined Protocols each with 40 Stages.
- Graphs/Tables: HR and BP Trend, Speed/Grade, Representative beats for all Stages.
- View/Print Full Disclosure Measurements for all Stages, ST Maximum/ST Average.
- On-screen Status of Test: Phase Time, Total Time, Speed, Grade, Target HR, 12- lead ST Levels and Slopes.
- Report Transmission via Fax or Network.
- Post Test Review/Editing of ECG Data.
- Baseline Correction and other Filters to Minimize Motion Artifact.
- Optional SpO2 available
- Optional NIBP available
- Smooth, quiet, zero start AC inverter drive.
- Smooth, quiet linear actuator elevation system.
- Low profile, cushioned deck (standard) for patient comfort and safety.
- 22" wide running belt instills user confidence.
- Patented MasterTrack belt alignment system eliminates off-center running belts.
- Exceptionally accurate, self-calibrating speed and elevation.
- Prominent emergency stop button.
- Minimum maintenance.
Materials Included
- ECG System
- Stress Cable
- Resting Patient Cable
- TMX428 Treadmill
- Treadmill Cable
- Stress Belt
- PC Software (Comes standard on CD; optional USB Thumb Drive or Online Web Link available)
- Adult SpO2 Ear Sensor (For Optional SpO2)
- Adult NIBP Cuff (For Optional NIBP)
- NIBP Tubing (For Optional NIBP)
- User Manual

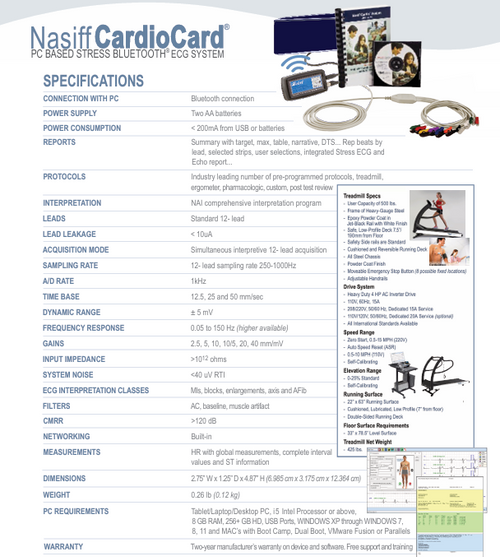

Technical Specifications
CardioCard PC Based Stress ECG System
- Dimensions: 2.75” W x 1.25” D x 4.87” H (6.985 cm x 3.175 cm x 12.364 cm)
- Weight: .26 lb (.12 kg)
- Networking: Built-in
- Leads: Simultaneous interpretive 12- lead acquisition of your PC ECG/PC EKG
- Real-time: 1, 2, 3, 6 or 12- ECG lead color display of ECG/EKG complex with real time ST and HR
- ECG Interpretation Classes: Mls, blocks, enlargements and axis
- Cable: 10 foot ECG patient cable with locking replaceable leads
- Paper Type: 8.5” x 11” standard printer paper
- Gain Accuracy: ± 5%
- Frequency Response: 0.05 to 150 Hz
- CMRR: >120 dB
- Input Impedance: >1012 ohms
- System Noise: <40 mV RTI
- Dynamic Range: ± 5 mV
- Cardio Stress SpO2 (Optional)
- Resolution: +/- 1%
- Accuracy: +/- 2% for 70-100%. +/- 3% for 60-69%
- Determination: 10-15 seconds
- Storage to CardioCard™ Database
- Reports Results in Database Records and Printouts
- Cardio Stress NIBP (Optional)
- Systolic and Diastolic Pressures with Automatic Inflation
- Adult Arm Cuff
- Oscillometric Method
- Determination Typically 15-50 seconds
- Storage to CardioCard™ Database
- Display Range 10 - 300 mmHg with Hi/lo Limit Indicators
- Report Results in Database Records and Print Outs
- PC Requirements: Tablet/Laptop/Desktop PC, Intel Compatible, 512MB RAM, 40GB HD, Windows XP, Windows Vista 32/64, Windows 7, 8, 10 and MAC’s with Boot Camp, Dual Boot, VMware Fusion or Parallels
Trackmaster TMX428 Treadmill
- Step-up Height: 7.0" from floor
- Running Deck Area: 22" x 63"
- Running Deck: Cushioned and reversible, self lubricating
- Running Belt: Anti-static, 2-ply Polyester with PVC textured surface
- Belt Tracking: Self aligning with adjustable rear roller
- Floor Space Requirement: 33” x 78.5”
- Construction: All steel chassis
- Cosmetic Finish: Powder coat subdued white with charcoal gray handrails
- Emergency Stop Button: Right hand or Left hand Estop
- Emergency Tether: Standard – opposite of Estop
- User Weight Capacity: 500 Lbs.
- Treadmill Net Weight: 425 Lbs.
- Communication Port: RS232 and USB 1.0
- Drive Motor: 4HP continuous (6HP peak) PWM DC brushless servo, improved torque at all speeds.
- Power Requirements (dedicated): 110-120V, 50/60Hz, 20 amp - 208-240V, 50/60Hz, 15 amp
- No-slip elevated belt (at test end): Belt locks 45 secs. when stopped
- Drive Belt: Self adjusting
- Elevation Motor: Linear Actuator with metal gears
- Speed: .5-12 MPH, .1-15 MPH (On CP)
- Speed and Elevation Calibration: Self calibrating
- Elevation: 0-25%
