Nasiff Associates, Inc. continues to take the lead in PC-Based Resting ECG systems. Performing fast testing and managing them easily with you at the point-of-care. Works with the following EMR systems: Allscripts MyWay, AthenaNet, Centricity, ChartMaker, eClinical Works, LytecMD, Medent, NextGen, Office Ally, OmniMed, PractiseFusion
Features and Benefits
- Meets newest FAA standards for EKG report submission! (FAA Class I Physicals)
- Bluetooth, wireless connection for transferring information
- EMR connectivity with seamless fully integrated systems
- Legendary quality and outstanding customer support
- Reliable, user-friendly, compact and durable
- Unlimited support and training
- Feature rich at the best price
- Made in USA
Materials Included
- CardioResting™ ECG System with Bluetooth®
- CardioCard™ Software (Comes standard on CD; optional USB Thumb Drive or Online Web Link available)
- 100 SupraTab Resting Tab Electrodes
- Resting 10L Banana Cable
- Adapter White Clips
- 2 Batteries
- Bluetooth USB Adapter
- CardioCard™ Bluetooth® Manual
- Nasiff Pen

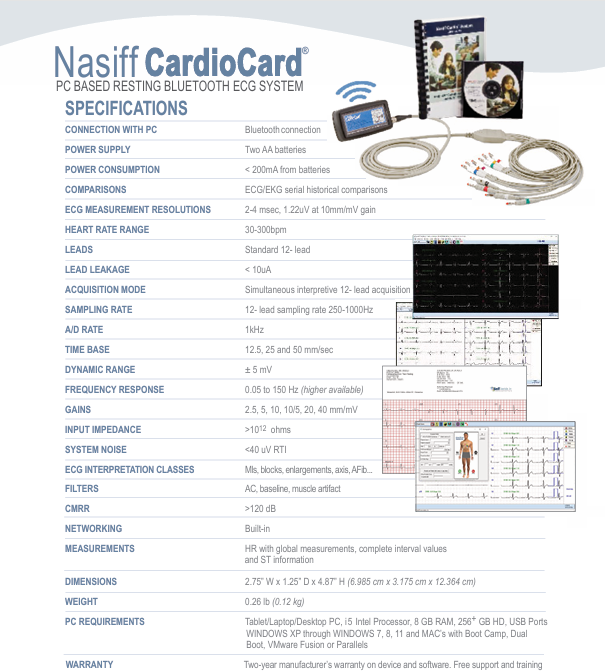

Technical Specifications
- Power Supply: DC 3v from 2 AA Batteries
- Power Consumption: < 200mA
- ECG Measurement Resolution: 2-4 msec, 1.22uV at 10mm/sec gain
- Heart Rate Range: 30-300bpm
- Leads: Standard 12 lead
- Lead Leakage: < 10uA
- Acquisition Mode: Simultaneous interpretive 12- lead acquisition
- Sampling Rate: 12 lead sampling rate 250-1000Hz
- A/D Rate: 1kHz
- Time Base: 12.5, 25 and 50 mm/sec
- Dynamic Range: ± 5 mV
- Frequency Response: 0.05 to 150 Hz (higher available)
- Gains: 2.5, 5, 10, 10/5, 20 mm/mV
- Input Impedance: >1012 ohms
- System Noise: <40 mV RTI
- ECG Interpretation Classes: Mls, blocks, enlargements, axis and afib
- Filters: High performance baseline filter, baseline correction and other filters to minimize motion artifact.
- CMRR: >120dB
- Networking: Built-in
- Measurements: HR with global measurements, complete interval values and ST information.
- Dimensions: 2.75” W x 1.25” D x 4.87” H (6.985 cm x 3.175 cm x 12.364 cm)
- Weight: .26 lb (.12 kg)
- PC Requirements: Tablet/Laptop/Desktop PC, Intel P4, 512MB Ram, 40GB HD, Windows XP, Vista 32/64 bit, Windows 7, Windows 8, Windows 10 and MAC’s with Boot Camp, Dual Boot,VMware Fusion or Parallels.
Warranty Information
- 2-year limited warranty
2-year limited warranty
