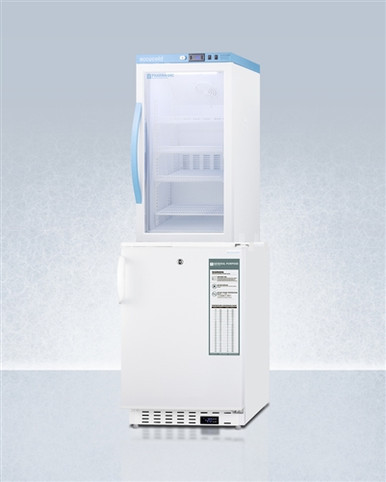

The AccuCold ARG3PV-ADA305AFSTACK 5.47 cu ft vaccine refrigerator with glass door and freezer with solid door combination offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines.
Features and Benefits
- Space-Saving Design: Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
- Easy Assembly: Unit ships in three boxes for customer to install the StackRack on the bottom freezer and place and secure the refrigerator on top
- +/-1ºC Variation (Refrigerator): The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- -25°C Capable (Freezer): Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Adjustable Temperature: Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -25º to -15ºC (freezer)
- Commercially Designed: ADA305AF freezer is ETL-S to NSF-7 commercial standards
- Temperature Alarms: Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Automatic Defrost with Adjustable Cycle Defrost (Refrigerator): Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Remote Alarm Contacts (Refrigerator): Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Open Door Alarm: Alarm will sound if the door is left ajar for over 4 minutes (refrigerator) or 1 minute (freezer)
- 3" Thick Door (Freezer): Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Flat Door Liners: Interior design of both units conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Adjustable Plastic-Coated Wire shelves for Improved Circulation (Refrigerator): Designed to accommodate a variety of sizes for flexible storage
- Basket Shelves (Freezer): Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Hospital Grade Cords with 'Green Dot' Plugs: Refrigerator & freezer have pre-installed hospital grade cords with 'green dot' plugs for added safety in high traffic areas
- Interior Light (Refrigerator): Energy efficient LED lighting with internal on/off switch
- Self-Closing Door (Refrigerator): Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
- No Internal Fans (Freezer): Temperature remains more stable with a static cooling system
- Sealed Back (Freezer): Space-saving design that offers easier cleanability
- Magnetic Door Gaskets: Quality door gaskets ensure a tight seal for energy savings and improved performance of each unit
- Eco-Friendly (Refrigerator): Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Usage Stickers: Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
- Versatile Design (Refrigerator): Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- 100% CFC Free: Environmentally friendly design without ozone-damaging chemicals
Technical Specifications
- Height of Cabinet: 66.0" (168 cm)
- Width: 19.75" (50 cm)
- Width with Door Open: 20.25" (51 cm)
- Depth: 22.5" (57 cm)
- Depth with Handle: 24.38" (62 cm)
- Depth with door at 90°: 40.0" (102 cm)
- Capacity: 5.47 cu ft (155 L)
- Defrost Type: Automatic
- Door: Glass
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 1.7
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 151.0 lbs. (68 kg)
- Door Swing: Right Hand Swing Door is standard; Optional Left Hand Door available.
- Reversible: Factory Reversible
- Adjustable Shelves: Yes
- Interior Drawers: Yes
- Drawer Qty: 3
- Interior Light: Yes
- Refrigerator - Interior Height: 28.38" (72 cm)
- Refrigerator - Interior Width: 15.25" (39 cm)
- Refrigerator - Interior Depth: 11.75" (30 cm)
- Refrigerator - Capacity: 3.0 cu ft
- Refrigerator - Shelf Type: Wire
- Refrigerator - Shelf Qty: 4
- Refrigerator - Temperature Range: 2 to 8°C
- Refrigerator - Refrigerant Type: R600a
- Refrigerator - Refrigerant Amount: 1.06 oz.
- Freezer - Interior Height: 23.75" (60 cm)
- Freezer - Interior Width: 14.5" (37 cm)
- Freezer - Interior Depth: 17.0" (43 cm)
- Freezer - Capacity: 2.47 cu.ft
- Freezer - Shelf Type: Drawers
- Freezer - Shelf Qty: 3
- Thermostat Type: Digital
- Fan Type: Interior
- Level Legs: 2
- Freezer - Temperature Range: -25° to -15°C
- Freezer - Refrigerant Type: R600a
- Freezer - Refrigerant Amount: 1.34 oz.
Warranty Information
- 1-Year Warranty on Parts and Labor
- 5-Year Warranty on Compressor Parts
