Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.

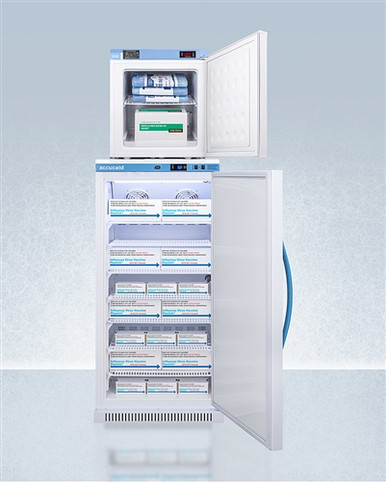

Sized just under 24" wide, the ARG8PV-FS24LSTACKMED2 combines the 8 cu.ft. ARG8PV auto defrost solid door all-refrigerator with the compact FS24LMED2 all-freezer into one slim footprint using Accucold's StackRack.
Features and Benefits
- Space-Saving Design: Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint.
- Purpose-Built Design: Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
- Adjustable Temperature: Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -20º to -15ºC (freezer)
- Remote Alarm Contacts (Refrigerator): Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Manual Defrost (Freezer): Static cooling system for reduced temperature fluctuations
- Open Door Alarm (Refrigerator): Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
- Sensor Failure Alarm (Refrigerator): Audible and visual alarm warns if the sensor is disrupted
- Microprocessor Control Panels: Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Factory-Installed Locks: Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit
- Interior light (Refrigerator): Energy efficient LED lighting with internal on/off switch
- Magnetic Door Gaskets: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Eco-Friendly (Refrigerator): Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Versatile design (Refrigerator): Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- Easy Assembly: Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top.

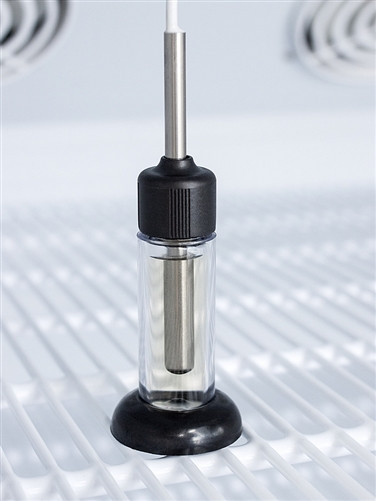

- +/-1ºC Variation (Refrigerator): The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period.
- Temperature Alarms: Visual and audible alarms alert if the interior temperature rises or falls out of set range.
- Automatic Defrost with Adjustable Cycle Defrost (Refrigerator): Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Access Ports: Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
- Audible Power Failure Alarm (Refrigerator): Battery-powered alarm sounds if the power connection is interrupted
- Password Protection (Refrigerator): Control panel requires password entry to adjust the parameters beyond the set point
- Resettable Min/Max Display (Refrigerator): Control panel provides a readout of the low and high temperatures in 15 minute increments
- Adjustable Plastic-Coated Wire Shelves for Improved Circulation: Designed to accommodate a variety of sizes for flexible storage
- Self-Closing door (Refrigerator): Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
Refrigerator/Freezer Options
- Lock Upgrades
- Keyless Access Lock (KAL) - Battery-powered self-locking keypad lock installed towards the top - Only works on refrigerator.
- Exterior Upgrades
- Factory Installed NIST Calibrated Digital Data Logger (DL2B) - Large LED-illuminated LCD screen provides a simultaneous display of the current, high, and low temperatures to the nearest tenth of a degree
Technical Specifications
- Height of Cabinet: 73.5" (187 cm)
- Width: 23.38" (59 cm)
- Width with Door Open: 23.88" (61 cm)
- Depth: 24.38" (62 cm)
- Depth with Handle: 26.13" (66 cm)
- Depth with door at 90°: 46.5" (118 cm)
- Capacity: 9.4 cu.ft. (266 L)
- Door: Solid
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Voltage/Frequency: 115 V AC/60 Hz
- Door Swing: Right Hand Swing Door is standard, Optional Left Hand Door available
- Reversible: Factory Reversible
- Adjustable Shelves: Yes
- Interior Light: Yes
- Refrigerator - Interior Height: 41.25" (105 cm)
- Refrigerator - Interior Width: 20.0" (51 cm)
- Refrigerator - Interior Depth: 17.0" (43 cm)
- Refrigerator - Capacity: 8.0 cu.ft
- Refrigerator - Shelf Type: Wire
- Refrigerator - Shelf Qty: 7
- Refrigerator - Temperature Range: 2 to 8ºC
- Refrigerator - Refrigerant Type: R600a
- Refrigerator - Refrigerant Amount: 1.73 oz.
- Freezer - Interior Height: 14.38" (37 cm)
- Freezer - Interior Width: 13.5" (34 cm)
- Freezer - Interior Depth: 13.25" (34 cm)
- Freezer - Capacity: 1.4 cu.ft
- Freezer - Shelf Type: Wire
- Freezer - Shelf Qty: 1
- Thermostat Type: Digital
- Fan Type: Interior
- Freezer - Temperature Range: -20º to -15ºC
- Freezer - Refrigerant Type: R134a
- Freezer - Refrigerant Amount:1.5 oz.
Warranty Information
- 2-Year Warranty on Parts and Labor
- 5-Year Warranty on Compressor
