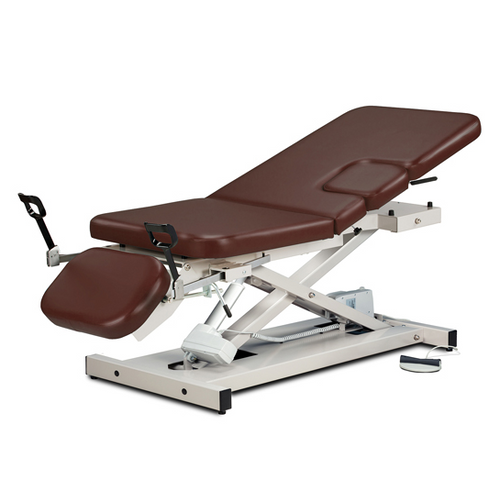

Clinton Power Imaging (ECHO) Table w/ Window Drop & Stirrups
The Clinton Open Base Multi-Use Power Imaging Table with Stirrups (Model #85309) is a versatile examination table designed for medical imaging procedures. It features a pneumatic backrest adjustable from either side, elevating up to 80 degrees from flat, and a footrest adjustable from either side, lowering up to 80 degrees from flat. The table includes a 10" x 10" hinged imaging window section with a metal slide latch, retractable, 2-position, length-adjustable stirrups, and electric power height adjustment with a hands-free foot control. Constructed with an ultra-strong, uni-frame base and top, heavy-duty, all-welded lift mechanism, and durable gray powder-coated steel frame, it ensures stability and longevity. The table supports a load capacity of 500 lbs (227 kg) under normal use. Made in the USA by Clinton Industries.
Features and Benefits
- Pneumatic backrest is adjustable from either side and raises 80 degrees from flat
- Footrest is adjustable from either side and raises 80 degrees from flat
- 10" x 10" hinged imaging window section with metal slide latch
- Retractable, 2-position, length adjustable stirrups
- Electric power height adjustment with foot control
- Ultra-strong, uni-frame base and top construction
- Heavy duty, all welded, lift mechanism
- Durable gray powder-coated steel frame
- Self-lubricating pivot points
- Smooth 110 volt electric height adjustment
- Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
- Hands-free low voltage foot control
- Easy service, self contained, electrical components
- Rounded corner, upholstered top
- 2" ultra-firm padding
- 450 lbs. load capacity under normal use
- Ships fully assembled
|
|
Length |
Width |
Height Range |
|
85309 |
76" |
27" |
18"-35" |
|
Backrest |
38" |
27" |
|
|
Drop Section |
13" |
19" |
