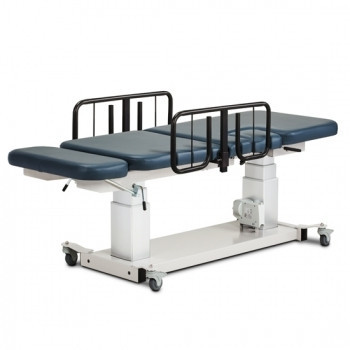

The Clinton Industries Model #80073 Imaging Table with Three-Section Top and Drop Window is a versatile and robust solution designed for various imaging procedures. This table offers exceptional functionality and patient comfort, making it an ideal choice for medical facilities.
Key Features:
-
Three-Section Top: Equipped with a pneumatic adjustable backrest and a manual footrest, both accessible from either side. The footrest lowers up to 80 degrees from a flat position, accommodating diverse patient positioning needs.
-
Drop Window: Incorporates a 10" x 10" drop window, facilitating specialized imaging requirements.
-
Trendelenburg Functionality: Offers ±15 degrees Trendelenburg and Reverse Trendelenburg adjustments, enhancing procedural versatility.
-
User-Friendly Controls: Features an easy-to-use hand control for seamless adjustments during procedures.
-
Durable Construction: Built with an all-welded base and top frame, ensuring long-lasting durability. The unobstructed base design and dual column lift system provide added stability and rigidity.
-
Additional Accessories: Includes a paper dispenser, cutter, and positioning straps. Optional side rails and casters are available to enhance functionality.
-
Load Capacity: Supports up to 500 lbs under normal use.
Technical Specifications
| Length | Width | Height Range | |
| 80073 (overall) | 76" | 27" | 21.5" - 37.5" |
| Backrest | 38" | 27" | |
| Footrest | 12" | 27" | |
| Window | 10" | 10" | |
| 80073-X (overall) | 76" | 34" | 21.5" - 37.5" |
| Backrest | 38" | 34" | |
| Footrest | 12" | 27" | |
| Window | 10" | 10" |
Warranty Information
- 5-Year Warranty
