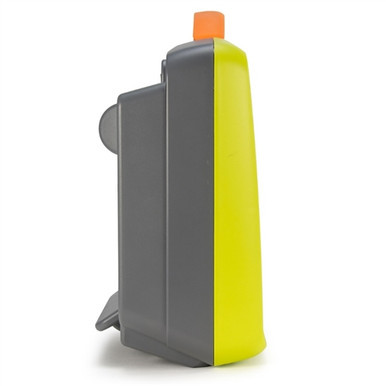

The ZOLL® AED 3 BLS is the latest ZOLL AED to hit the market. The ZOLL AED 3 continues with the ZOLL tradition for design, dependability, durability, and performance. The AED 3 comes with a color touchscreen LCD display, Real CPR Help®, is WiFi enabled for PlusTrac, Defibrillator Dashboard™ Cloud Connection, RescueNet® Case Review ™, clinical event case push, and UTC synchronization. The CPR Dashboard™ is configurable to display ECG, no ECG, or lay-rescuer.
Features and Benefits
- Enhanced Real CPR Help
- The CPR Dashboard shows the actual depth and rate of compressions displayed numerically, along with elapsed time, CPR cycle count, shocks delivered and ECG.
- Integrated Pediatric Rescue
- The ZOLL AED 3 makes pediatric rescue simple with Pedi-padz II electrodes and a child mode setting which configures the AED's algorithm and delivers child-appropriate treatment without an attenuator.
- Rugged Design
- Built to function in extreme environments with an IP Rating of 55 and a 1-meter drop-test rating.
- WiFi and USB Connectivity
- Using Zoll Online CaseReview, detailed rescue performance data can be exported quickly and easily via USB or transferred directly over WiFi.
Materials Included
- ZOLL® AED 3 BLS
- CPR Stat Padz Electrodes
- Non Rechargeable Lithium Ion Battery
- Soft Carrying Case
- User Manual
Technical Specifications
- Dimensions
- Height: 5.0" / 12.7 cm
- Weight: 9.3" / 23.6 cm
- Depth: 9.7" / 24.7 cm
- Weight: 5.5 lbs / 2.5 kg
- Power: Battery
- Wireless: 802.11 a/b/g/n
- Security Protocols: WPA 1, WPA 2, WPA Personal, WPA Enterprise
- Port: USB 2.0
- Rescue Accessory Pack Contents: Non-latex gloves, a CPR barrier mask, razor, paper towel, and towelette
- Device Classification: Class II and internally powered per EN60601-1
- Design Standards: Meets applicable requirements of EN 60601-1, IEC 60601-1-11, IEC 60601-2-4
- Environment
- Operating Temperature: 0° to 50°C; 32° to 122°F
- Storage Temperature: -30° to 70°C; -22° to 158°F
- Humidity: 10% to 95% relative humidity, non-condensing
- Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2, EN 1789, Sweep per EN 60068-2-6 Test Fc.
- Shock: IEC 60068-2-27; 100G
- Altitude: -381 m to 4573 m; -1250 to 15,000 ft
- Particle and Water Ingress: IP55
- Drop Test: 1 meter; 3.28 feet
- Battery
- Type: Disposable, sealed lithium manganese dioxide
- Battery Standby Life (once installed): 5 years with weekly self-test, 3 years with daily selftest; 3 years* with weekly self-test when auto Wi-Fi self-test report is on (PlusTrac Cloud Connection); end of life indicated by blank status window (typical remaining shocks: 9).
- Battery Shelf Life: Store for up to 2 years at 23°C (77°F) prior to installing in AED 3 to maintain above battery life
- Temperature: 0°C to 50°C (32°F to 122°F)
- Humidity: 10% to 95% (non-condensing)
- Weight: 317.5 grams; 0.7 lbs
- Size:
- Height: 1.0" / 27.75 mm
- Width: 5.16" / 133 mm
- Depth: 3.5" / 88 mm
- Nominal Voltage: 12 volts
- Defibrillator
- Protocol: Semiautomatic and Fully Automatic configuration
- Waveform: ZOLL Rectilinear Biphasic™
- Defibrillator Charge Hold Time: 30 seconds ; ZOLL AED 3
- Automatic Model: 3 seconds prior to automatic shock delivery
- Energy Selection: Factory pre-programmed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 75 J, 85 J)
- Patient Safety: All patient connections are electrically isolated
- Charge Time: Less than 10 seconds with new battery
- Pre-shock Pause: 8 seconds with new battery
- Electrodes: ZOLL CPR Uni-padz™
- Self-Test: Configurable automatic self-test every day or every 7 days; Default: every 7 days. Monthly full energy test (200 J).
- Automatic Self-test Checks: Battery capacity, status and expiration; electrode connection and expiration; ECG and charge/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
- Compression Depth: 1.9 cm to 10.2 cm; 0.75 in to 4 in (adult patients only)
- Defibrillation Advisory: Evaluates defibrillation pad connection and patient ECG to determine if defibrillation is required
- Shockable Rhythms: Ventricular fibrillation with average amplitude >100 micro volts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for pediatrics.
- Patient Impedance Measurement Range: 10 to 300 ohms
- Defibrillator: Protected ECG circuitry
- Display Format: High-resolution LCD with capacitive touch panel
- Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
- Data Recording and Storage: User-configurable for 1 or 2 clinical events for total of 120 minutes. Includes ECG, impedance measurements, device prompts and CPR data
- Data Recovery: Controlled by touchscreen, uploaded to USB memory stick, or ZOLL Case Review™ over a Wi-Fi network
- Internal Clock Synchronisation: Coordinated Universal Time (UTC) synchronisation occurs when communicating with the ZOLL Online server
Warranty Information
- 6-Year Warranty
