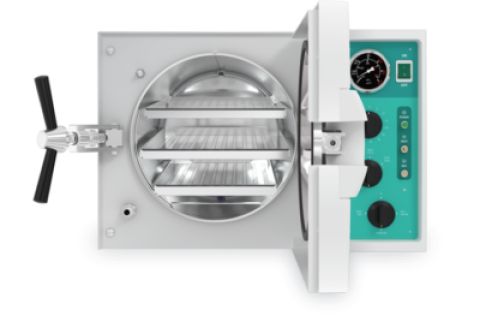

Tuttnauer TVET 9M & TVET 10M Manual Veterinary Autoclaves
Designed specifically for veterinary clinics, the Tuttnauer TVET 9M and TVET 10M autoclaves offer reliable, efficient, and user-friendly sterilization solutions. These manual tabletop autoclaves are ideal for practices seeking dependable performance without the complexity of automatic systems.
? Key Features:
-
Manual Operation: Simple, one-touch activation for each stage of the sterilization cycle.
-
Durable Construction: Electropolished 316L stainless steel chamber ensures longevity.
-
Safety Mechanisms: Double safety locking device prevents door opening while chamber is pressurized; dual safety thermostat protects against overheating.
-
Efficient Drainage: Front-located drain valve allows quick and easy water reservoir drainage.
-
Automatic Shut-Off: Unit automatically shuts off at the end of both sterilization and dry cycles.
-
User-Friendly Interface: Colorful control panel designed with the operator in mind.

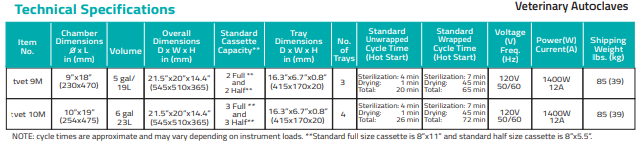

Technical Specifications:
TVET 9M:
-
Chamber Dimensions: 9" x 18" (230mm x 470mm)
-
Chamber Volume: 5 gallons (19L)
-
Overall Dimensions (D x W x H): 21.5" x 20.1" x 14.4" (545mm x 510mm x 365mm)
-
Tray Capacity: 3 trays
-
Tray Dimensions: 16.3" x 6.7" x 0.8" (415mm x 170mm x 20mm)
-
Standard Cassette Capacity: 2 full & 2 half cassettes
-
Standard Unwrapped Cycle Time (Hot Start): Sterilization: 8 min; Drying: 1 min; Total: 14 min
-
Voltage & Frequency: 110V, 50/60Hz
-
Power & Current: 1400W, 12A
-
Shipping Weight: 85 lbs (39 kg)
TVET 10M:
-
Chamber Dimensions: 10" x 19" (254mm x 475mm)
-
Chamber Volume: 6 gallons (23L)
-
Overall Dimensions (D x W x H): 21.5" x 20.1" x 14.4" (545mm x 510mm x 365mm)
-
Tray Capacity: 4 trays
-
Tray Dimensions: 16.3" x 6.7" x 0.8" (415mm x 170mm x 20mm)
-
Standard Cassette Capacity: 3 full & 3 half cassettes
-
Standard Unwrapped Cycle Time (Hot Start): Sterilization: 8 min; Drying: 1 min; Total: 15 min
-
Voltage & Frequency: 110V, 50/60Hz
-
Power & Current: 1400W, 12A
-
Shipping Weight: 85 lbs (39 kg)
?️ Warranty:
-
Parts & Labor: 1-year warranty
-
Chamber: 10-year warranty
