Radwag PUE-7.1.600.HRP High Resolution Scale
The HRP high resolution scales feature a cutting-edge measuring system based on RADWAG MONOBLOCK® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.
Maximum capacity [Max]: 600 kg
Readability [d]: 5 g
Repeatability not repeatable by others
Metrological parametersPhysical parametersConstructionCommunication interfaceElectrical parametersEnvironmental conditions
| Maximum capacity [Max] |
600 kg |
| Minimum load |
250 g |
| Preload range |
60 kg |
| Readability [d] |
5 g |
| Tare range |
-600 kg |
| Repeatability |
7.5 g |
| Linearity |
±15 g |
| Stabilization time |
3 s |
| Adjustment |
internal (automatic)
|
| Display |

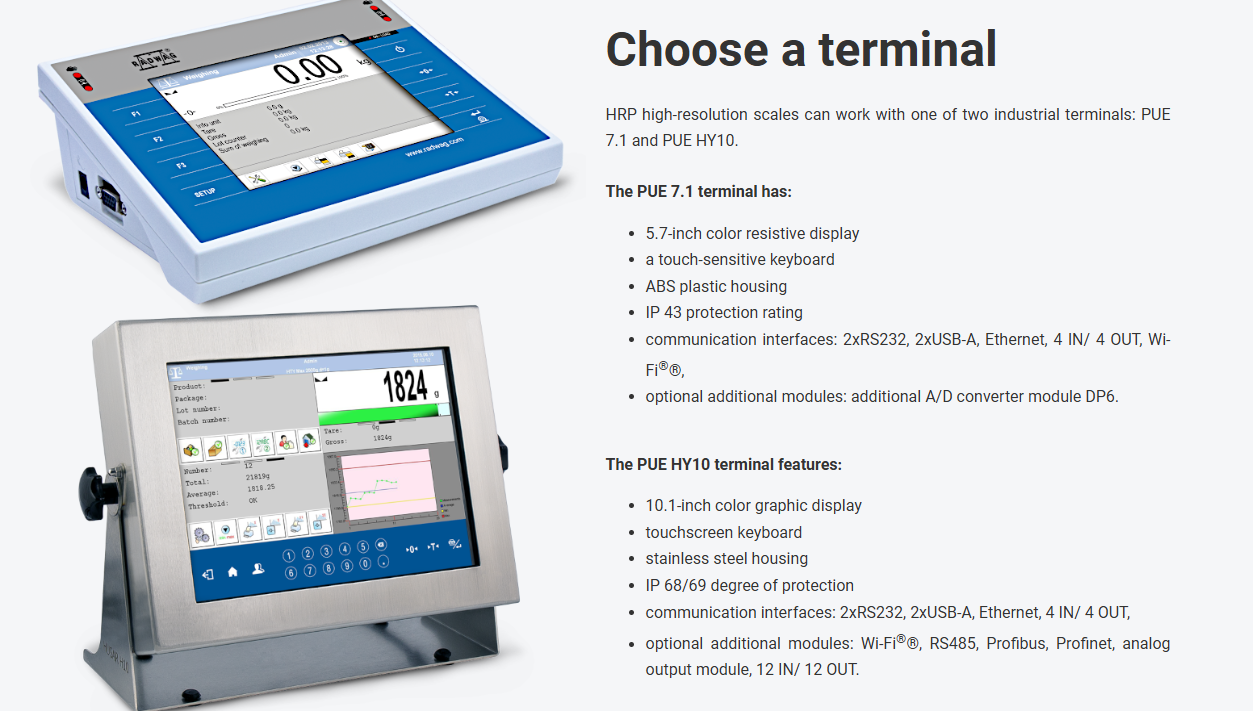

5.7” Resistive Color Touchscreen
|
| Weighing pan dimensions |
1000×800 mm |
| Device dimensions |
360×313×170 mm |
| Packaging dimensions |
1000×1200×436 mm |
| Net weight |
126 kg |
| Gross weight |
160 kg |
| Protection class |
IP 66 / 67 construction, IP 43 terminal
|
| Construction |
mild steel St3S
|
| Weighing pan material |
Stainless steel AISI304
|
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
|
| Power supply |
100 – 240 V AC 50/60 Hz
|
| Operating temperature |
+10 – +40 °C |
| Relative humidity |
15% – 80%
|
