Old Product Code: MWLH-25 New Product Code: WX-016-0109

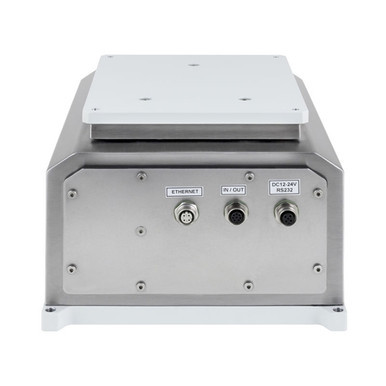

Operation of professional MWLH electromagnetic high resolution modules is based on an electromagnetic digital converter. The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed. Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.
Features and Benefits
- Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65).
- Reading unit of 0,01 g.
- Ease of adaptation to required usage area.
- Cooperation with HY terminal.
Technical Specifications
- Maximum capacity [Max]: 25kg
- Minimum load: 5g
- Preload range: 2.5kg
- Readability [d]: 0.1g
- Tare range: -25kg
- Repeatability: 0.1g
- Linearity: ±0.1g
- Stabilization time: 2s
- Adjustment: External
- Protection class: IP65
- Power supply: 100 ÷ 240V AC50/60Hz
- Operating temperature: +10 ÷ +40°C
- Relative humidity: 15% ÷ 80%
- Weighing pan dimensions: 212 x 174mm
- Device dimensions: 341 x 236 x 164mm
