Pulse Oximeter in USA

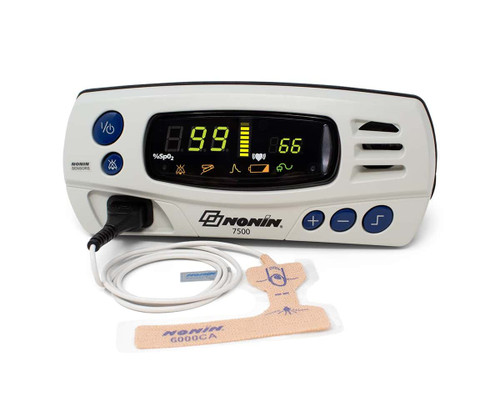

NONIN's 7500 pulse oximeter has a unique low-profile design that enables it to fit easily on a tabletop or into its own carrying case. The stylish, compact 7500's simple functionality, minimum 16-hour battery life, 4-hour quick recharge, and minimum or 70 hours of memory makes it well-suited for a variety of clinical and homecare applications. Like all NONIN portable oximeters, the 7500 provides a wide variety of display indicators that provide reliable readings.
Features and Benefits
- Lightweight & compact.
- Bright LED displays and large display screen offer clear readability.
- Rugged design.
- Over 70 hours of memory available for extended monitoring.
- Monitors neonate to adult patients in acute care to homecare environments.
- Use as a stand alone device or interface with other equipment.
Materials Included
- 7500 Tabletop Pulse Oximeter
- 8000AA-3 Adult Finger Clip SpO2 Sensor (3 meters)
- 1 Power Supply
- 1 Power Cord
- 1 7500B Battery Pack
- User Manual
The 7500 provides a variety of display indicators that ensure reliable readings.
Pulse Strength Bar Graph
Color coded bar graph assists in assessing the patient’s status. An audible tone sounds with each pulse. The pitch changes with the patient’s saturation level.
Pulse Quality IndicatorDetects patient movement or signal quality changes that may require sensor site stabilization.
Sensor Fault IndicatorIndicates when a sensor has become disconnected, misaligned, failed, or is incompatible with the monitor.
A quick and complete assessment of your patient’s oximetry readings is made easier with the combination of information supplied by the Pulse Strength Bar Graph, variable pitch pulse/saturation tones and Pulse Quality Indicator.
Flexible & Versatile Alarm Settings
Patient Security Mode
Locks alarm limits, volume and time/date settings, prevents unintentional changes and provides automatic recall of locked limits.
Recall Function
Reinstatement of user’s last customized alarm settings.
User-Defined Defaults
Allows user to adjust the alarm limit and volumedefault settings to their specific requirements.
| Oxygen Saturation Range | 0–100% SpO2 | ||||||||||||||||||||||||
| Pulse Rate Range | 18–321 BPM | ||||||||||||||||||||||||
|
Displays |
LED, Bar graph, tri-color segments LED, bi-color LED, amber 3-digit, 7-segment LEDs, green LED, amber |
||||||||||||||||||||||||
| Saturation Accuracy (Arms)a: | 70–100% | ||||||||||||||||||||||||
|
|||||||||||||||||||||||||
| Pulse Rate Accuracy: | 18–300 BPM (no motion) 40–240 BPM (motion) 40–240 BPM (low perfusion) |
||||||||||||||||||||||||
|
|||||||||||||||||||||||||
| Memory: | 70 hours (assuming continuous operation) | ||||||||||||||||||||||||
| Temperature (Operating): Temperature (Storage/Transportation) |
0° to +40°C (32°F to 104°F) -30° C to +50°C (-2°F to 122°F) |
||||||||||||||||||||||||
| Humidity (Operating): Humidity (Storage/Transportation): |
10–90% noncondensing 10–95% noncondensing |
||||||||||||||||||||||||
| Altitude (Operating): Hyperbaric Pressure: |
Up to 12,000 meters (40,000 feet) Up to 4 atmospheres |
||||||||||||||||||||||||
| Power Requirements (Mains): | 100–240 VAC 50–60 Hz | ||||||||||||||||||||||||
|
Internal Power: |
7.2 volt NiMH battery pack 16 hours minimum 21 days minimum 4 hours maximum |
||||||||||||||||||||||||
| Dimensions: | Approximately 219 mm (8.6”) W x 92 mm (3.6”) H x 142 mm (5.6”) D |
||||||||||||||||||||||||
| Weight: | Approximately 900 grams (2 lbs) with battery |
||||||||||||||||||||||||
| Warranty: | 3 years | ||||||||||||||||||||||||
| Classification per IEC 60601-1/CSA601.1/UL60601-1: | |||||||||||||||||||||||||
| Type of Protection: | Internally powered (on battery power) | ||||||||||||||||||||||||
| Degree of Protection: | Type BF-Applied Part | ||||||||||||||||||||||||
| Mode of Operation: | Continuous | ||||||||||||||||||||||||
| Enclosure Degree of Ingress Protection: | IPX2 | ||||||||||||||||||||||||
|
Analog Outputs: |
0-1 VDC (0–100% SpO2), 1.27 VDC (out of track) 0-1 VDC (0–300 BPM), 1.27 VDC (out of track) 0 V (no event), 1 V (event occurred) ± 2% (SpO2), ± 5% (Pulse Rate) 2 mA maximum |
||||||||||||||||||||||||
| a ± Arms represents approximately 68% of measurements Specifications are subject to change without notice. |
|||||||||||||||||||||||||
