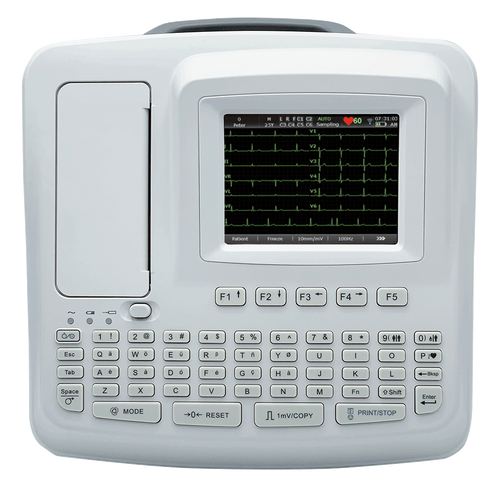

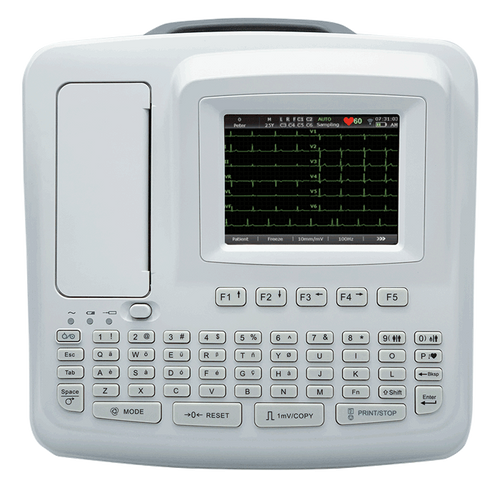

Edan SE-601 6-Channel EKG Machine
Compact, portable, easy to use, multi-channel ECG SE-601 series are remarkably transportable and bring with them high efficiencies in both regular tests and emergencies.
Features and Benefits
- Compact, lightweight and portable design
- Vivid waveform display on 5.7" LCD screen
- Alphanumeric keyboard and one touch operation
- Pacemaker detection for the requirements of ANSI/AAMI ECII
- Automatic measurements and interpretation tested by authoritative CSE/MIT/AHA database
- Heart Rate Variability (HRV) analysis
- Internal thermal printer and external printer via USB port
- PC-based data management software (Smart ECG Viewer)
- Data transmitting to PC via LAN/WIFI
|
Model
|
Screen
|
Internal speaker
|
Interpretation
|
Internal storage
|
|
SE-601A
|
3.5 inch STN LCD, 192*64 dots
|
buzzer
|
Yes
|
50 ECGs
|
|
SE-601B
|
5.7 inch STN LCD, 320*240 dots
|
loudspeaker
|
Yes
|
100 ECGs
|
|
SE-601C
|
5.7 inch TFT color LCD, 640*480 dots
|
loudspeaker
|
Yes
|
200 ECGs
|
Materials Included
- SE-601 ECG Unit
- (1) 10 Lead Patient Lead Cable
- (100) Resting Tab Electrodes
- (1) Universal Clips

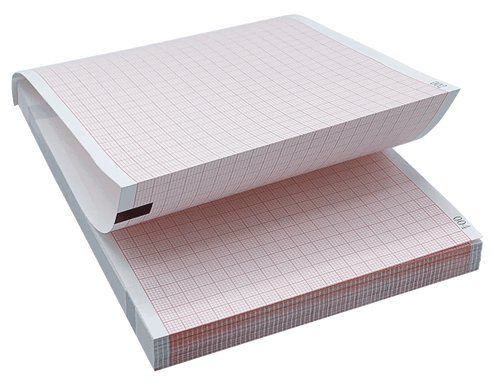

- (1) Pack of Recording Paper
- (1) Rechargeable Lithium Ion Battery
- (1) Power Cord
- User Manual
Technical Specifications
- Dimensions: 288mm x 210mm x 70mm
- Input Circuit: Defibrillation protection built-in
- Lead: Standard 12 leads
- Acquisition Mode: Simultaneous 12 lead acquisition (10-24s adjustable)
- A/D Converter: 24 bits
- Input Voltage Range: +- 5mVp-p
- Time Constant: >3.2s
- Frequency Response: 0.05Hz ~ 150Hz
- Calibration Voltage: 1mV +- 2%
- Sensitivity: 2.5, 5, 10, 20, 10/5, ACG (mm/mV)
- Record Paper: 110mm x 140mm* 144P (Z-fold)
- Display:
- 320 x 240 pixels LCD (Wide Screen)
- 192 x 64 pixels LCD (Narrow Screen)
Warranty Information
- 3-Year Warranty
