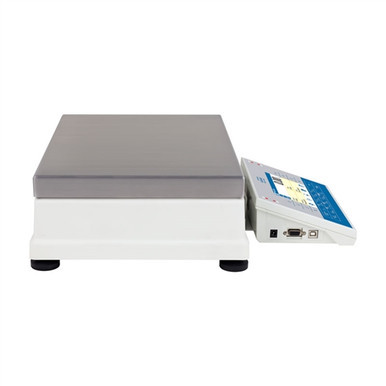

Radwag PM-35.C32 Precision Balance
PM Balances by RADWAG – Laboratory Precision Under Industrial Conditions
Maximum capacity [Max]: 35 kg
Readability [d]: 0.1 g
PM balances also include:

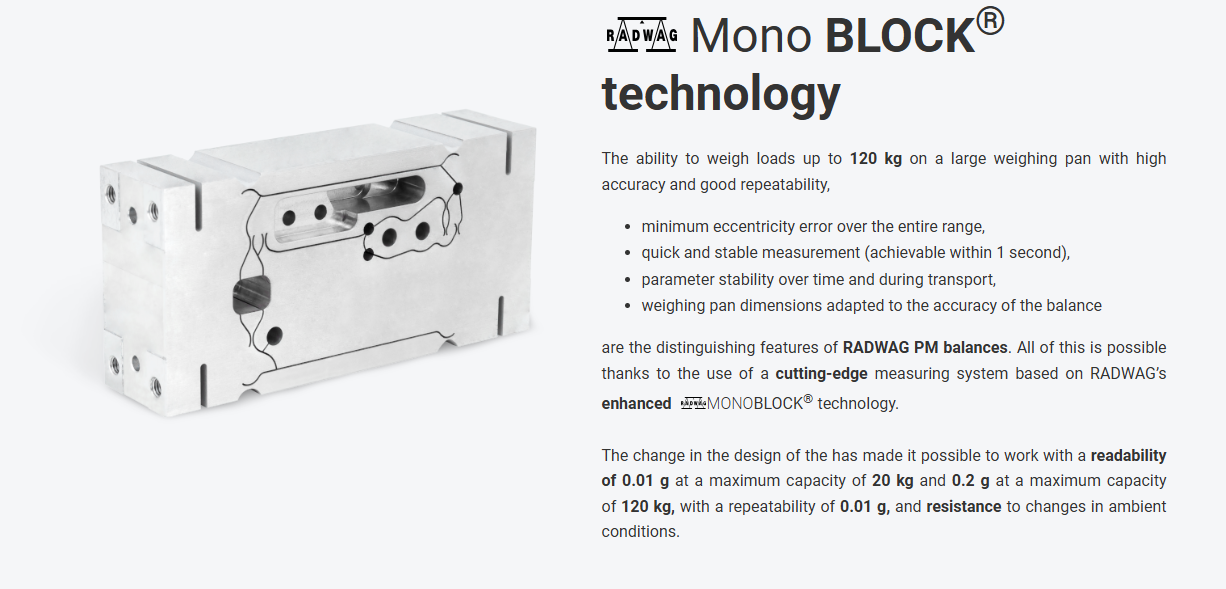

- robust design based on a larger and taller Monoblock,
- built-in 4-point overload protection system,
- IP 43 ingress protection,
- internal adjustment,
- 5" colour display,
- easy start-up, intuitive operation, and ergonomics.
Metrological parametersPhysical parametersConstructionCommunication interfaceElectrical parametersEnvironmental conditions
| Maximum capacity [Max] |
35 kg |
| Minimum load |
5 g |
| Preload range |
3.5 kg |
| Readability [d] |
0.1 g |
| Verification unit [e] |
1 g |
| Tare range |
-35 kg |
| Minimum weight (USP) |
82 g |
| Minimum weight (U=1%,k=2) |
8.2 g |
| Repeatability (Max) |
0.1 g |
| Repeatability (5% Max) |
0.04 g |
| Linearity |
±0.3 g |
| Stabilization time |
1 s |
| Adjustment |
internal (automatic)
|
| OIML Class |
II
|
| Leveling system |
manual
|
| Display |
5” graphic colour
|
| Weighing pan dimensions |
350×260 mm |
| Packaging dimensions |
520×520×280 mm |
| Net weight |
11.04 kg |
| Gross weight |
13 kg |
| Protection class |
IP 43
|
| Communication interface |
2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
|
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
| Operating temperature |
+10 – +40 °C |
