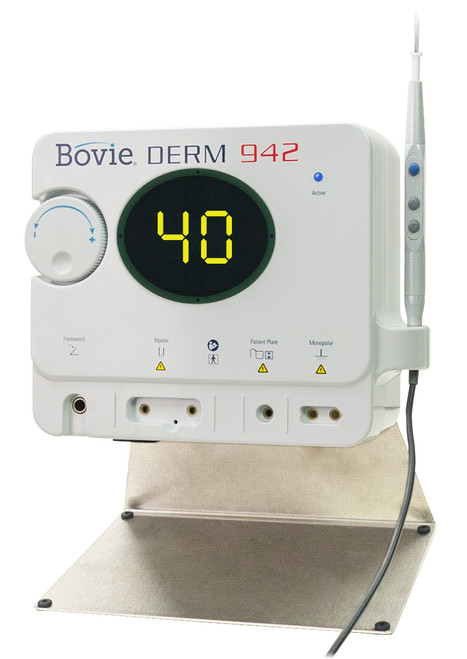

Bovie® DERM 942 High Frequency Desiccator - High Frequency Desiccator Monopolar/ Bipolar
Designed for years of trouble-free use, the Bovie DERM 942 is designed and engineered to be the most reliable and durable desiccator available today. The unit’s life is prolonged by incorporating the latest in chip technology and reducing the number of internal parts, thereby generating less internal heat. Post-procedure and long-term cleanup are simplified by its non-absorbing, non-staining, high impact plastic case.
The Bovie Derm 942 is designed and engineered to be the most reliable and durable desiccator available today.
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST TYPE (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Spray Coagulation | 40 | 6300V | 9.5 ± 20% | 410 kHz ± 82.0 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST TYPE (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Standard Bipolar | 40 | 950V | 5.5 ± 20% | 368 kHz ± 36.8 kHz |
Technical Specifications:
- Cord: 110 VAC Hospital-grade power cord
- Lifespan: Reusable
- Sterilization Status: Non-sterile
Dimensions:
- Width: 8.98 in (228 mm)
- Height: 7.40 in (188 mm)
- Depth: 4.13 in (105 mm)
- Weight: < 5 lbs (<2.26 kg)
Electrical Specifications:
- Monopolar: Spray Coagulation
- Monopolar Watts: 40 watts
- Monopolar Vpeak Max Voltage: 6300 V
- Monopolar Crest Type (Typical): 9.5 ± 20%
- Monopolar Frequency (KHZ): 410 ± 82 kHz
- Bipolar: Standard Bipolar
- Bipolar Watts: 40 watts
- Bipolar Vpeak Max Voltage: 950 V
- Bipolar Crest Type (Typical): 5.5 ± 20%
- Bipolar Frequency (KHZ): 368 ± 36.8 kHz
- Line Frequency: 50-60 Hz
- Output Frequency: 328-492 kHz
- Line Voltage: 100-240 VAC
- Output Power: Bipolar: 40 watts
- Output Power: Fulguration: 40 watts
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Audible/Visible Output Meter: Yes
- Pre-set Feature: No
- Monopolar HP Ports: 1 Port(s)
- Connector Ports/Power Switch: White
Safety Specifications:
- Latex-Free: Yes
