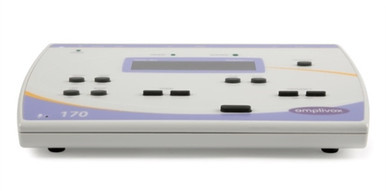

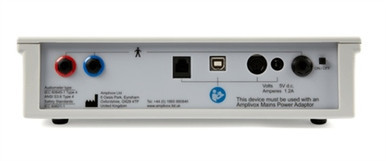

Amplivox 170 Portable Manual & Automatic Screening Audiometer
The Amplivox 170 is a stylish, cost-effective screening audiometer offering both automatic and manual audiometry.
Features and Benefits
- Frequency range: 125 - 8000Hz
- Attenuation range: -10 - 100dBHL
- Pure tone audiometry
- Manual pulse tone option
- Portable and lightweight design
- Integrated talk forward function
- Threshold retention function (during test)
- Connectivity to many electronic medical record (EMR) systems
- Upon test completion, results can be printed with the optional Sanibel Infra-red External Printer & Cable, saved in memory for future use, recorded manually or transferred to a PC installed with Amplivox AmpliSuite 1.2 software for electronic storage and statistical analysis of audiogram results.
- Available software's to download for free; also included on a USB stick
- AmpliSuite 1.2
- The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
- The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
- The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
- Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
- ampliSuite NOAH
- The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
- Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
- ampliSuite PRO
- Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.
- Optional audiocups headset available
Materials Included
Amp 170 Automatic & Manual Audiometer
- (1) Audiometric Headset
- (1) Patient Response Switch
- (50) Audiogram Cards
- (1) Power Adapter
- (1) CD Software
- (1) USB Stick with AmpliSuite 1.2 PC Software & User Manual
- (1) Noah audiometry module
- (1) Audiocups headset (Optional)
Technical Specifications
- Output/Input Data
- Outputs: Left AC, Right AC
- Frequency range (Hz): 125, 250, 500, 750, 1K, 1K5, 2K, 3K, 4K, 6K, 8K
- Frequency accuracy: <1%
- Distortion: <2%
- Output level range (AC): -10dBHL to 100dBHL (max)
- Output level accuracy: Within 3dB
- Output level step size: 5dB
- Test modes: Automatic and Manual
- Internal memory: 12 complete tests
- Designed Printer: High speed portable thermal printer
- Physical Data
- Graphic display: 2 lines of 24 characters (backlit)
- Power (Mains): 100-240V ac 50/60 Hz
- Dimensions:
- Length:10.5”
- Width: 7”
- Height: 2.75”
- Weight: 1.6 lbs
- Standards
- Safety: EN60601-1
- EMC: EN60601-1-2
- Audiometric:
- IEC 60645-1
- ANSI S3.6
- CE Mark: Complies to EU Medical Device Directive
Warranty Information
- 3-Year Warranty
