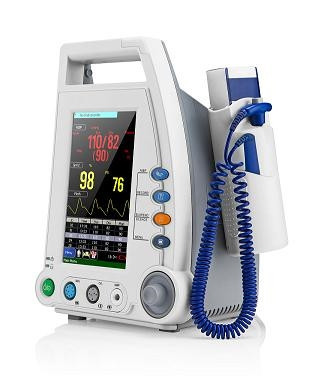

The Venni VI-300A Vital Signs Monitor features a user-friendly operating interface with large fonts for easy readability from across the room.
Features and Benefits
- 7” Color Anti-glare TFT LCD 234×480 pixels resolution.
- Resistance to high electromagnetic power and is protected against defibrillation effects.
- Large font display for distant visibility.
- User friendly operating user interface with feature rich popup menus, dialogue boxes and rotary mouse.
- Digital SpO2 technology offers anti-motion and anti-low perfusion functions.
- Audio and visual comprehensive alarm with configurable vital sign limit settings.
- Up to 960 hours of trend data storage.
- Optional Covidien Temperature and Respironics Sidestream EtCO2 available.
Standard Configuration
- NIBP
- SpO2/Pulse Rate
- Thermal Printer
- Lithium Battery
- Temperature (Optional)
- Sidestream EtCO2 (Optional)
Materials Included
- Vital Signs Monitor
- (1) SpO2 Finger Sensor
- (1) Adult Cuff (25-35 cm)
- (1) NIBP Tubing
- (1) Printer
- (1) Roll of Paper
- (1) Power Cord
- (1) Grounding Cable
- (1) Covidien Temperature (Optional)
- (1) Temperature Probe
- (20) Probe Covers
- (1) Respironics Sidestream EtCO2 (Optional)
- (1) Reusable Sampling Line
- (2) Needle Canulas
- User Manual
Technical Specifications
NIBP
- Measurement Method: Automatic oscillometry
- Patient Types: Adults/Pediatrics/Neonate
- Measurement Parameters: Systolic, Mean, Diastolic
- Measurement Range: 10-270mmHg
- Units of Measurement: mmHg/Kpa
- Static Accuracy: ±2% or ±3 mmHg, whichever is greater
- Clinical Accuracy: ±5 mmHg average error, <=8 mmHg standard deviation
Pulse Rate/SpO2
- Display: Digital and PLETH waveform
- Measurement Range: 0-100% Resolution: 1%
- Pulse Rate Range: 25-255BPM Accuracy: ±1% or ±1 bpm, whichever is greater
- Resolution: 1BPM
Temperature
- Measurement Range: 34.0–43.0°C
- Accuracy:
- Quick Mode: ± 0.54 ºF (± 0.3 ºC)
- Standard Mode: ± 0.18 ºF (± 0.1 ºC)
- Direct Mode: ± 0.18 ºF (± 0.1 ºC)
- Fastest Predictive Readings:
- < 4 sec Oral
- 10-15 sec Axillary/Rectal
- < 60 sec Direct Mode
- Unit: Celsius (°C), Fahrenheit (ºF)
Power Requirements
- AC:100-240V, 50/60 Hz, 70VA
Warranty Information
- 2-Year warranty.
