DETECTO’s solo eye-level clinical scale is the most economical, high-quality digital physician scale with height rod available. The solo scale features 550 lb x 0.2 lb / 250 kg x 0.1 kg capacity, 14 in W x 15 in D x 2.4 in H low-profile platform, inline mechanical height rod (measures 30 in to 84.5 in / 76 cm to 214.5 cm), eye-level weight display and column, one-inch-high LCD readouts, Body Mass Index calculation, integral wheels for mobility, one RS232 serial port, and convenient audible beep confirmation. The solo indicator features 8 simple buttons that are easily identifiable in any language. The solo® is powered by 6 AA batteries, which are included, or an optional AC adapter.
Features and Benefits
- 1" / 25mm high LCD
- 1 RS232 Serial Port
- Low-Profile Platform
- 550lb x 0.2lb / 250kg x 0.1kg Capacity
- 6 AA Batteries Included
- BMI Calculation
- EMR/EHR Ready
- Eye-Level Weight Display Convenience
- Inline Mechanical Height Rod
- Integral Wheels Ease Transport
- Optional AC Adapter (PD-AC)
- Rock-solid Stable Column Aluminum White Powder Coated
Note: AA size Alkaline batteries are included
Technical Specifications
- Capacity: 550lb x 0.2lb / 250kg x 0.1kg
- Platform Size:
- Width: 14" (36cm)
- Depth: 15" (38cm)
- Height: 2.4" (6cm)
- Weight Units: Pounds or Kilograms (selectable upon initialization at start-up; changeable through Settings menu)

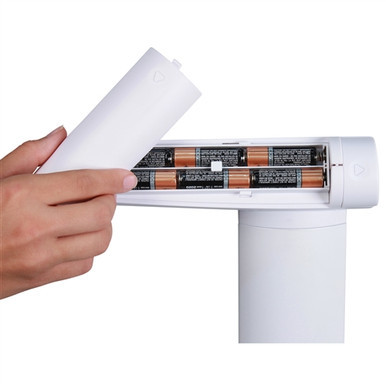

- Power: Six (6) AA size Alkaline batteries (included) OR an optional medical device 9V AC/DC wall plug-in adapter (Detecto part number PD-AC).
- Display: Five-digit, seven-segment, 1.0-inch (25-mm) high LCD digits
- Operating Temperature: 50 to 104 ºF / +10 to +40 ºC
- Function Keys: ON/OFF, PRINT, ENTER, UP ARROW, DOWN ARROW, BMI HEIGHT, LOCK/RELEASE, ZERO
- Annunciators: ZERO, LOCK, STA, HOLD, lb, kg, cm, FT/IN, HEIGHT, WEIGHT, BMI, AM, PM
- Scale Dimensions:
- Width: 0.3cm
- Depth: 49.5cm
- Height: 132.1cm

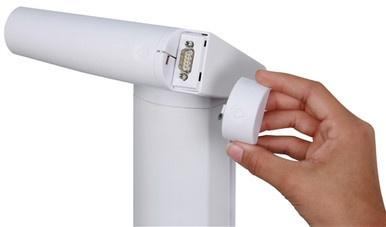

- Interface: Port, 9-Pin (DB-9), Baud Rate 9600
- Height Rod: Mechanical included standard, inline
- Height Rod Units: Inches or Centimeters
- Height Rod Range: 30" to 84.5" / 76cm to 214.5cm
- Manual Input Height: 2 ft 0.0" – 7 ft 10.5" by 0.5" / 60.0cm - 240.0cm by 1cm
- Minimum Weighing: 11lb / 5kg
- Wheels: (2) wheels for ease of movement
- Selectable Auto Shut-Off: Up to 9 Minutes
- Construction: base – white ABS; mat – black PVC
