The MedVue Medical Weight Analyzer offers a host of different options, both wired and optional wireless, for DETECTO scales to connect with multiple devices for efficient EMR/EHR.
Features and Benefits
- Vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility.

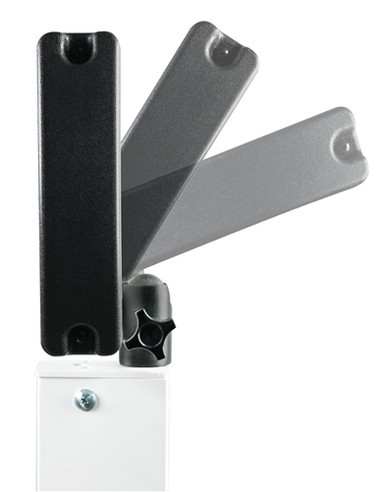

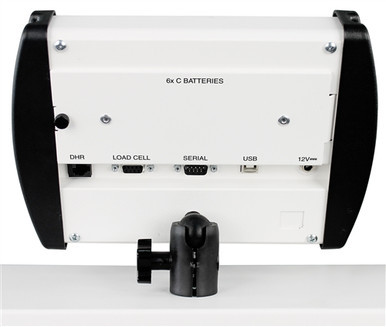

- 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view.
- 14-digit patient ID which may be entered via the alphanumeric keypad
- 99 stored tare weights, 200 stored transactions, 1LOOK display, and four different languages available in set-up (English, Spanish, French, and German).
Note: Ni-Cad or NiMH batteries are not included
Technical Specifications

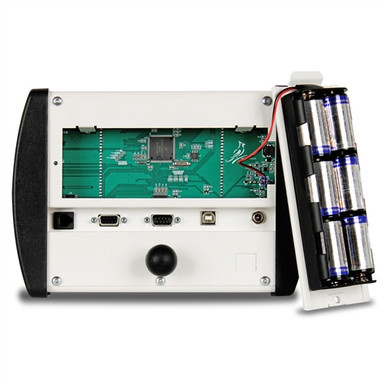

- Power Requirements: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
- Overall LCD Display Size: 3.5 inch W x 3 inch H (89 mm W x 76 mm H) backlit blue LCD
- Weight Display: 5 digit, seven segment, 0.875 inch (22.23 mm) high LCD
- Height Display: 4 digit, seven segment, 0.5 inch (12.7 mm) high LCD
- Body Mass Index Display: 3 digit, seven segment, 0.5 inch (12.7 mm) high LCD
- ID Display: 14 digit, 14 segment, 0.35 inch (8.89 mm) high LCD
- Sensitivity: 0.5 uV/division (0 to 3.0 mV/V), Class III
- Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
- Signal Input Range: 0 to 15mV max.
- Transducer Excitation: 5.0 VDC
- Number of Load Cells: up to 4 each 350 Ω
- Load Cell Cable Length: 30 feet (9 meters) max.
- Resolution: 10,000 divisions
- Capacities: Weight: 10,000 divisions commercial - Height: 0 - 9' 11.9 - BMI: up to 999
- NTEP: Certificate of Conformance Number 13-011
- Division Value: 1, 2 or 5 x 1, 0.1, 0.01, 0.001
- Sample Rate: 1 to 100 samples per second selectable
- Auto Zero Range: 0.5 or 1 through 9 divisions
- Weighing Units: Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg) and Kilograms/Pounds (kg/lb)
- Keyboard: Membrane type with 19 keys
- Enclosure Size: 9.8 inch W x 6.8 inch H x 1.8 inch D (248.9 mm W x 172.7 mm H x 45.7 mm D)
- Construction: Painted steel
- Battery Life: 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF)
- LCD Viewing Range: Up to 30 feet / 10 meters for weight digits
Warranty Information
- 2-Year Warranty
