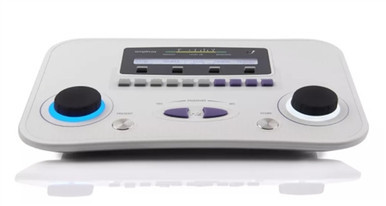

Amplivox 270 Air, Bone and Speech Audiometer (SISI Testing Capable)

Amplivox 270 Air, Bone and Speech Audiometer (SISI Testing Capable)

The 270 diagnostic audiometer is an ideal 2 channel audiometer. With an ergonomic design and a clear layout, the key features of the audiometer can be accessed through dedicated keys.

Features and Benefits

• 2 channel audiometry
• Frequency range: 125 - 8000Hz
• Attenuation range: -10 - 120dBHL
• Air and bone conduction, ULL/UCL
• Speech testing (live and recorded)
• Tone selection: Pure, pulsed, warble, continuous
• Narrowband masking
• Special tests: ABLB, Stenger, SISI
• Portable and lightweight design
• Integrated talk forward function
• Threshold retention function (during test)
• The results can be saved in memory, printed with the optional printer or exported via the included AmpliSuite 1.2 Software compatible interface (AC, BC, speech, and ULL results).
• Optional inserts are available; inserts are a small tube with a foam plug and the sound goes through the tube. Inserts will be calibrated to the unit.
• Available software's to download for free; also included on a USB stick
  • AmpliSuite 1.2
    • The ampliSuite 1.2 is the perfect companion for your workflow and can be used without a database. This is the ideal free solution for those using a paper or other database which required PDF session uploads.
    • The audiometry module has both tone and speech options which can uploaded directly from the audiometer to the suite.
    • The immittance module includes both tympanometry and acoustic reflex options with large graphs which can selected individually for extensive review.
    • Both modules includes a wide range of counselling tools, such as adjustable PTA calculation, SRT, customisable normative boxes and pass and refer evaluations.
  • ampliSuite NOAH
    • The ampliSuite NOAH connects seamlessly with NOAH 4 for both modules.
    • Using a database enables you to conduct a baseline comparison with as many results as you’d like displayed on one graph in multiple colors for easy comparison.
  • ampliSuite PRO

    • Designed to be user-friendly with unlimited storage for measurement data and client information, our database has one-click features, automatic backup and advanced login options.

Materials Included

• Amplivox 270 Audiometer
• (1) Audiometric Headset
• (1) Bone Conductor Headset
• (1) Patient Response Switch
• (1) Mains Adaptor
• (1) Integrated Talk Over Function
• (50) Audiogram Cards
• (1) Carrying Case
• (1) USB Stick with AmpliSuite 1.2, AmpliSuite NOAH & AmpliSuite PRO Software & User Manual

Technical Specifications

• Output/Input Data

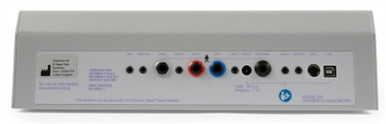

  • Outputs: Left AC, Right AC, Bone (L&R) insert masking and freefield
  • Frequency range (Hz): AC: 125-8kHz BC: 250Hz-8kHz
  • Frequency accuracy: <1%
  • Distortion: <2%
  • Output level range (AC): -10dBHL to 120dBHL (max)
  • Output level range (BC): -10dBHL to 70dBHL (max)
  • Output level range (FF): Up to 90dB
  • Insert masking output: 90dBHL max (250-4kHz)
  • Output level accuracy: Within 3dB
  • Output level step size: 2.5dB/5dB
  • Output transducer options: Standard audiometric headset (AC) and/or optional insert earphones
  • Tone present: Pure Tone, Pulsed, Warble or Continuous
  • Masking: Narrowband
  • Lock: Synchronous channel lock
  • Clinical tests: SISI, Stenger, ABLB
  • Communication: Integral talk over and talk back facility
  • Recorded speech: Tape or CD input
  • Live speech: 2 x microphone input
  • Level indicator: Monitors live and recorded speech
  • NOAH interface: Transfer of AC, BC speech and ULL test results
• Physical Data
  • Display: 2 lines of 24 characters (backlit)
  • Power: 240V ac 50/60 Hz
  • Dimensions:
    • Length: 14"
    • Width: 9"
    • Height: 3.8"
  • Weight: 3.4 lbs
• Standards
  • Safety: IEC 60601-1
  • EMC: IEC 60601-1-2
  • Audiometric: IEC 60645-1, IEC 60645-2 ANSI S3.6
  • CE mark: Complies to EU Medical Device Directive

Warranty Information

• 3-Year Warranty

Note: Item is non returnable.
