i4 Semen Evaluation Microscope

LW Scientific

(No reviews yet) Write a Review
SKU:
I4S-SE
Weight:
17.00 LBS
$3,785.52
MSRP: $4,450.94
(You save $665.42 )
Adding to cart… The item has been added

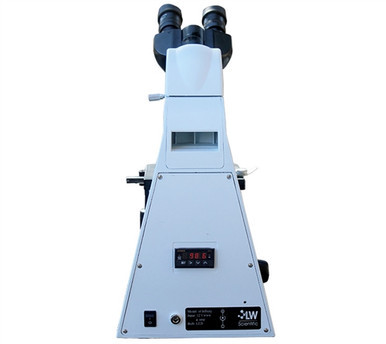

Perfect for veterinarians or fertility clinics, the new i4 Semen Evaluation LabScope is the complete package for live specimen microscopy. Motility analysis should be performed at 98.6 degrees Farenheit to keep sperm active, and the heated stage has a built-in digital temperature control unit which can be set for any temperature up to 110 degrees Farenheit. The heated stage will maintain accurate and stable temperatures within +/- 0.3 degrees during observation. This microscope looks and functions like a standard laboratory-grade microscope when in brightfield configuration. The Plan phase objectives and turret condenser allow flat-field, high-contrast viewing of live, unstained specimens, and easy magnification changes with the flip of the thumb.



Features and Benefits

  • Semen evaluaton - motility analysis
  • Live biological specimen analysis
  • Functions as standard brightfield microscope as well
  • Portable: Can operate with battery power
  • i4 complete laboratory binocular microscope.
  • 10X/20 WF eyepieces with rubber eye guards
  • Built-in heated stage
  • X-Y mechanical stage for precise slide movements
  • Built-in digital temperature control unit
  • Infinity plan flat-field objectives
  • Phase 10x, Phase 20x, Phase 40x, Phase 100x
  • Turret condenser with Phase and Brightfield
  • Variable LED illumination
  • 110v / 220v auto-switching AC power adapter CE, UL, cUL approved
  • Stage and microscope powered by single intergral 12v DC power supply

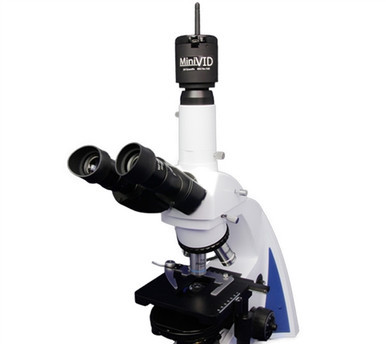

  • Optional trinocular head with camera connections

Technical Specifications

  • Dimensions: 16 1/2" x 10 5/8" x 7 7/8"
  • Variable digital temp. control up to 110º F
  • Set temperature in 0.1 degree increments
  • Displays actual temperature in 0.1 degree increments
  • Accurate within 0.3º F
  • Reaches temperature within 5-10 minutes

Materials Included

  • i4 Semen Evaluation Microscope Unit (Binicular or Trinocular)
  • Blue-green-yellow filters
  • Immersion Oil
  • Dust Cover
  • User Manual
  • Warranty Card

Warranty Information

  • 1-Year Warranty
