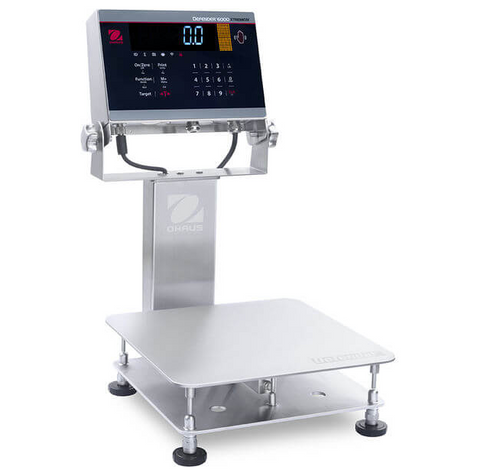

The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Applications:
Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold
Display:
6-digit, 7-segment white LED, 20 mm high digits
Operation:
100-240 VAC / 50/60 Hz universal power supply, hardwired
Communication:
Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction:
316 stainless steel platform and frame, hermetically-sealed, stainless steel load cell, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel
Design Features:
150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet
| Maximum Capacity | 50 lb (25 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 0.01 lb (5 g) |
| Platform Size | 11.8 in x 11.8 in (300 mm x 300 mm) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Power | Rechargeable Battery (not Included); AC Power (Included) |
| Battery Life | Not Applicable |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions | 16.8 in x 20.4 in x 11.8 in (427 mm x 518 mm x 300 mm) (LxHxW) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Net Weight | 25.8 lb (11.7 kg) |
| Outputs | 4-20 mA; 0–10V; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | IP69k; IP68 |
| Second Scale Input | Not applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
