On-Site Training Included!

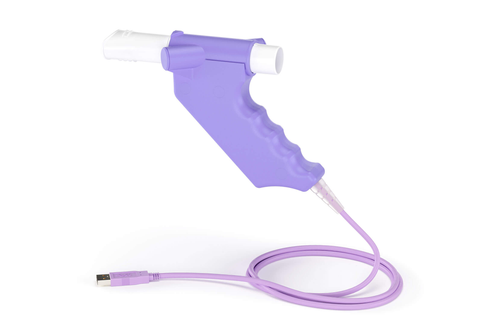

ndd Medical Technologies’ Easy on PC uses the power of your PC, laptop, or tablet, leveraging True Flow ultra sound technology for a complete spirometry solution. The Easy on PC uses pediatric incentives, displays inspiratory and expiratory real time curves and offers challenge testing. Some of the essential features include flexible EMR capabilities, trending, selectable predicted values and interpretation, automated quality control and supports multiple languages.
Features and Benefits
- Simple and economic consumables.
- Easy to operate outside lab with operator prompts and diagnostics.
- Extremely high accuracy for low flows.
- PC guided spirometry.
- Bio calibration check feature.
- Ready to use GDT interfacing possibility.
- In- and expiratory real-time curve.
- Test selection with or without tidal breathing.
- Actualized Fletcher curve on report.
- Country specific predicted values selectable.
- Interpretation mode selectable.
- Multilingual.
Materials Included
- Spirometry Sensor
- (1) Software on USB Dongle
- (1) USB Cable
- (3) Spirettes
- (1) Nose Clip
- User Manual
Note: Laptop not included.
Modes, Parameters and Standards
- Auto QC user selection for best trial from 8.
- Tidal breathing selectable.
- FEV1, FEV6, FEV1/FEV6, FVC, FVL.
- FEV1/FVC, FEV1/VC, FEV1/VCin, PEF, Pre/Post, % var, MEF (FEF)
- ERS, ATS.
Technical Specifications
- Dimension of PC Sensor: 16 x 3 x 7 cms
- Weight: 155 g
- Cable Length: 1.8 m
- Measuring Accuracy:
- volume +/- 2 % or 0,050 l
- flow +/- 2 % or 0,020 l
- PEF+/- 5 % or 5 l/min
- Resolution:
- volume > 1 ml
- flow 4 ml/s
- Measuring Range:
- volume +/- 12 l
- flow +/- 16 l/s
- Resistance: approx 0.3 cm H2O/l/s
- PC Operating System: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Windows Vista, Windows 7, Windows 8 (32 and 64 bit)
- Processor: Intel-/Pentium or equivalent, 1GHz
- Interface: USB 2.0 or earlier
- Screen Resolution: min 1024 x 768 - 1280x960
- Hard Disk Capacity: Installation/System 1GB, Memory 4GB
- RAM: min 512 MB - 1GB recommended
Warranty Information
- 2-Year Warranty
