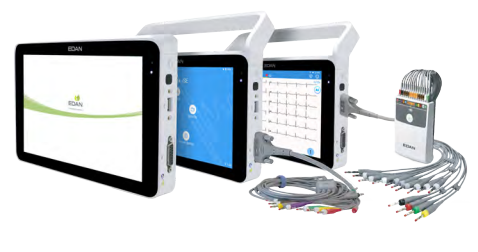

Edan iSE ECG Machine
Features:
▪ Auto arrhythmia detection
▪ QTC analysis & Interpretation (Glasgow included)
▪ With a resolution reaching up to 1920x1200, the
display captures intricate waveform details clearly
▪ Zero button design for easy cleaning and disinfection
▪ Automatic sampling once all lead cables are connected
▪ Built-in Lithium-Ion battery with up to 8 hours of operating time

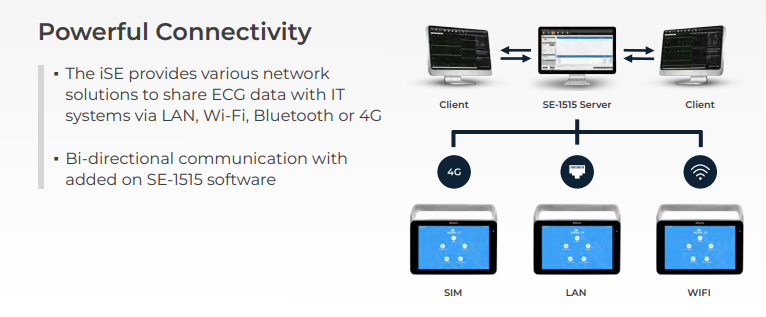

▪ File export for PDF, JPG, FDA XML, DICOM ECG Waveform/Worklist, HL7
Standard Parameters: 12-lead ECG
Optional Parameters: 18-lead ECG, Thermal Recorder
Included Accessories
▪ Rechargeable Li-Ion Battery
(15.2V, 3550mAh) — 01.21.064394
▪ Power Adapter (19V) — 21.21.064244
▪ ECG Cable (4mm, banana connector, AHA) — 01.57.471614
▪ 10-Lead Universal Clips - Snap/Banana Socket Adapters — 01.57.040172
PHYSICAL SPECIFICATION
No handle or thermal printer: 270mm(L)×170mm(W)×28mm(H)
With handle: 270mm(L)× 230mm(W)× 52mm(H)
With thermal printer: 274mm(L)× 274mm(W)× 90mm(H)
Weight:
1.2 kg (excluding thermal printer, handle, and printer)
1.4 kg (with handle, excluding thermal printer and printer)
2.3 kg (with thermal printer, excluding handle and printer paper)
DISPLAY
Screen Size: 10.1''
Resolution: 1920 x 1200 LCD full touch screen
