On-Site Training Included!

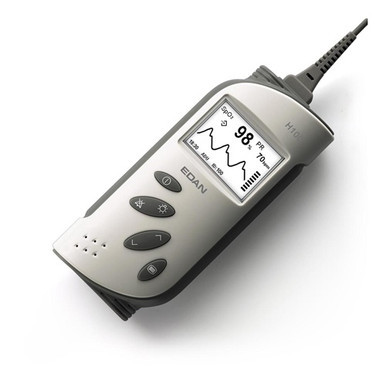

The H100B Pulse Oximeter provides a simple universal tool for patient monitoring – from spot checks to continuous monitoring. All monitoring data can be transferred to PC for storage, management, review and printing.
Features and Benefits
- FDA Approved
- LCD display
- RTC (Real Time Clock) display
- Backlight control and automatic power-off function for power saving
- SpO2 and Pulse rate measurement
- Display numeric and waveform of SpO2 simultaneously
- Long battery life - up to 48 hours on 4 “AA” or 36 hours on Ni-MH rechargeable batteries
- Powerful data storage capacity
- Data can be transferred to PC for storage, review and printing
- The latest 10 minutes trend graph and table of SpO2 and Pulse Rate can be reviewed in the screen
- Audible and visible alarm capability
- Pitch Tone
Sample Output
Materials Included
- H100B Hand Held Pulse Oximeter
- (1) EDAN Adult Reusable SpO2 Sensor
- (4) AA Size Battery
- (1) Carrying Case
- User Manual
- H100B Quick Reference Card
Technical Specifications
- Size: 160 (L) x 70 (W) x 37.6 (H) (mm)
- Weight: 165 (g) (without battery)
- Temperature:
- Working: 5°C ~ 40°C
- Storage: -20°C ~ 55°C
- Humidity:
- Working: 25% ~ 80% (no coagulate)
- Storage: 25% ~ 93% (no coagulate)
- Display: H100B - 128*64 dot-matrixes LCD
- Charger Stand:
- Input voltage: 100 to 240 VAC, 50/60 Hz
- Output voltage: 8 VDC
- Output current: 0.8 A
- Output power: 6.4 W
- Battery: Ni-MH rechargeable battery package
- Total rated voltage: 4.8 V
- Capacity: 1800 mAh
- Typical battery life: 36 hours
- Charge time:
- 2.5 hours to 80%
- 4 hours to 100%
- Alkaline battery life: 4 pieces 1.5 V AA 48 hours.
- Measurement Range:
- SpO2: 0 ~ 100%
- PR: 30 ~ 254 bpm
- Accuracy Tolerance:
- Saturation:
- Adult and Pediatric: +- 2 digits (70-100%)
- Neonate: +- 3 digits (70-100%)
- Pulse Rate:
- Adult and Pediatric: +- 3 digits
- Neonate: +- 3 digits
- Resolution:
- SpO2: 1%
- Bpm: 1 bpm
- Saturation:
Warranty Information
- 3-Year Warranty
