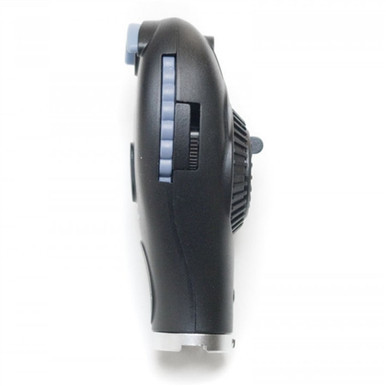

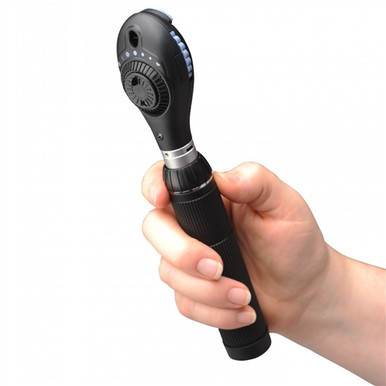

3.5v Diagnostic EENT instruments are among the most critical toolsets in a clinician's repertoire to perform a comprehensive physical exam. ADC Diagnostix brand EENT instrument sets help the practitioner perform fast exams and accurately diagnose a range of patient conditions thanks to innovative optical and lighting technologies.
Features and Benefits
- High performance aspherical condenser lens reduces corneal reflection
- Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s principal)
- Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions
- Synthetic rubber brow rest facilitates use with practitioner eyeglasses
- Magnified/illuminated aperture viewing window
- Universal bayonet mount for compatibility with other brands of 3.5v power supply handles
- Anti-theft locking feature is standard
- Choose from Halogen/Xenon or advanced AdLED illumination
- 29 viewing lenses from -35 to + 40 (PLUS 1-10, 12, 15, 20, 40 – Minus 1-10, 15, 20, 25, 30, 35)
- 24 aperture/filter combinations for improved versatility
- LED Illumination
- Dust proof
Functions Performed
- Slit – Used to help determine levels of tumors and lesions
- Fixation - Has graduated cross-hairs for measuring eccentric fixation or locating lesions
- Large - Standard aperture for a dilated pupil and general examination of the eye
- Small - Provides excellent view of fundus through an undilated pupil
- Micro Spot- Allows quick entry into small, undilated pupils
- Half Moon – Provides a combination of depth perception and field of view
Filters
- Red Free - Excludes red rays from examination field for easy identification of veins, arteries and nerve fibers.
- Cobalt - Used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea.
- Polarizing – Virtually eliminates corneal reflection.
Materials Included
- Coax head
- Power handle
- Lithium-ion battery
- (5) 2.75 mm Specula
- (5) 4.25 mm Specula

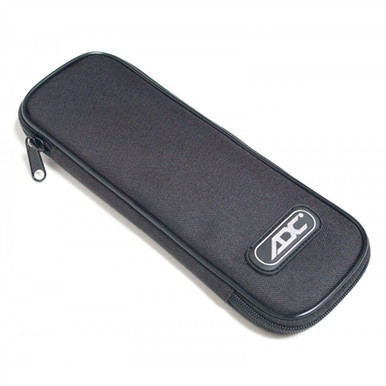

- Soft Carry Case
- User Manual
Warranty Information
- 2 year warranty on instrument.
- Lifetime warranty on AdLED lamp.
