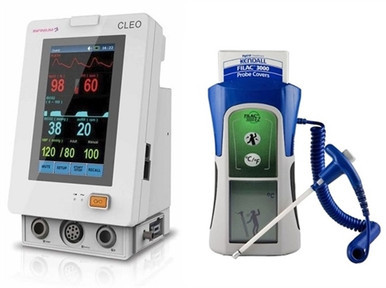

Infinium CLEO Capnograph (CO2) with Vital Signs SPO2 + NIBP

The CLEO vital signs monitor is an intuitive approach to patient vital signs measurement.



Features and Benefits

• 5" Touch Screen making the CLEO easy and intuitive for any user
• Portable and light weight design
• Long life lithium ion battery
• Suited for bedside and mobile spot check use.
• Respiration and pleth waveform
• Comes with standard NIBP and SpO2 measurements
• Optional Covidien Filac 3000™ Thermometer (Thermometer does not interface with the CLEO Monitors, readings are separate)
  • 4 Second oral temperature reading brightly displayed on-screen.
  • Supports infection control by utilizing single use probe covers and probe isolation chamber

Note: The CLEO Data Manager Software is available to download.

Materials Included

• CLEO Vital Signs Monitor
• (1) Adult Blood Pressure Cuff
• (1) Blood Pressure Hose
• (1) Adult Finger Sensor
• (1) Sensor Cable
• (1) Power Cord
• (1) Filac Thermometer (Optional)
  • 4 ft Oral Probe (Optional)
  • 1 Probe Cover (Optional)
• User Manual

Technical Specifications

• Application: Neonatal, Pediatric and Adult Patients
• Dimensions
  • Height: 8"
  • Width: 4.5"
  • Depth: 4"
• Weight: 2.5 lbs
• Display: 5.0" Diagonal Color TFT
• Resolution: 800 x 3 (RGB) x 480
• Indicator:
  • Alarm Indicator
  • Power Indicator
  • Pulse Beep and Alarm Sound
  • Trend Time: 1 to 72 hours
• NIBP
  • Measuring Technology: Automatic Oscillating Measuring
  • Cuff Inflating: < 30s (0~300 mmH, standard adult cuff)
  • Measuring Period: AVE <40s
  • Mode: Manual, Auto, STAT
  • Measuring Interval in AUTO mode: 2 min - 4 hours
  • Pulse Rate Range: 30 bpm - 250 bpm
  • Measuring Range:
    • Adult/Pediatric Mode
      • SYS: 40 - 250 (mmHg)
      • DIA: 15 - 200 (mmHg)
    • Neonatal Mode
      • SYS: 40 - 135 (mmHg)
      • DIA: 15 - 100 (mmHg)
    • Resolution: 1 mmHg
    • Pressure Accuracy: Maximum Mean Error ± 5 mmHg
    • Maximum Standard Deviation: 8 mmHg
    • Overpressure Protection:
      • Adult Mode/Pediatric: 280 (mmHg)
      • Neonatal: 150 (mmHg)
    • Alarm Limit:
      • SYS: 50 - 240 mmHg
      • DIA: 15 - 180 mmHg
    • Standards: Meets performance standards of ANSI/AAMI SP10:2002
• SpO2
  • ASpO2: Anti-Motion SpO2
  • SpO2 Range: 0 - 100%
  • SpO2 Accuracy:
    • ± 2% (70 - 100% non-motion)
    • ± 3% (70 - 100% motion)
  • Pulse Rate Range: 30 - 250 bpm
  • Pulse Rate Accuracy:
    • ± 2 bpm (non-motion)
    • ± 3 bpm (motion)
  • Alarm Upper-Lower Limit:
    • Upper Limit: 70 - 100%
    • Lower Limit: 70 - 100%
  • SpO2 Probe:
    • Red Light LED Wavelength:
      • 660nm ± 5nm
      • Infrared Light LED Wavelength: 940 ± 5nm
    • Standard: Meets performance standards of EN ISO 9919:2005
• Rapid Temperature (Optional)
• Temperature Measurement Range: 30°C to 43°C (86°F to 109°F)
• Typical Measurement:
  • Oral (Quick Mode): 3-5 Seconds (non-fever temps); 8-10 seconds (fever temps)
  • Oral (Standard Mode): 6-10 seconds
  • Axillary Mode: 8-12
  • Rectal Mode: 10-14 seconds
  • Direct Mode (All Sites): 60-120 seconds
• Pulse Timer: 60 second count with a "beep" at 15 seconds, 2 "beeps" at 30 seconds, 1 "beep" at 45 seconds and 2 "beeps" at 60 seconds.
• Patient Accuracy: A standard Prediction Mode reading and a Direct Mode reading will differ by less than ± 0.2°C (± 0.4 °F) on 98% of tested patients
• Batteries: Four AA Required. Standard IEC package size. Alkaline - 1.5 Volt
• Standards: Meets performance standards of EN 12470-3:2000, ASTM E1112:2006
• Networking
  • Wired Networking:
    • Industry Standard: 802.1 b/g wired network
    • Frequency Range: 2.412 - 2.484 GHz
    • Connected Bedside Number: Up to 16 bedside monitors
  • Wireless Networking
    • Up to 100m indoors
    • Industry Standard 802.11 b/g wireless
    • Supports TCP/IP and UDP/IP Protocols
• Power
  • Source: External AC Power or Internal Battery
  • AC Power: 100 - 240 VAC, 50/60 Hz, 150VA
  • Battery: Built-in and Lithium Ion Recharge, 12.6v/5Ah
  • Charge Time: 8 Hours
  • Operating Time: 3 Hours
  • Fuse: 3.15A/250V
• Environmental Specifications
  • Temperature
    • Operating: 5 - 40 °C
    • Storage: -10 - 45 °C
  • Humidity Range:
    • Operating: ≤80 %
    • Storage: ≤80 %
• LCD Specifications
  • Display Type: TFT
  • Size: 5" Inch Diagonal
  • Active Area: 152.4 (W) x 91.44 (H) mm
  • Dot Pitch: 0.0635 (W) x 0.1905 (H) mm
  • Display Mode: Normally, white, transmissive
  • Interface: Digital (TTL)
  • Surface Treatment: Anti-Glare
• Touchscreen
  • Type: Four-Wire Analog Resistive Touch Panel
  • Input Mode: Stylus Pen or finger
  • Connector: FPC
  • Voltage: 7VDC
  • Chattering: 10ms
  • Transparency: 80%
  • Surface Hardness: 3H
  • Durability-Surface Scratching: Write 100,000
  • Active Force: 80 gf
  • Knock Test: 1,000,000 times

Warranty Information

• 2-Year Warranty
